Updated: 19/12/22Studbolt (SSB) 16mm

Click thumbnail to
view large image

VIEW OTHER SIZES

For additional technical data please call the Sales Desk on
01702 206962 or 01702 207909

Please note: From time to time, materials and specifications are changed to improve performance, please check for the latest information.

*SSB 16mm* Options

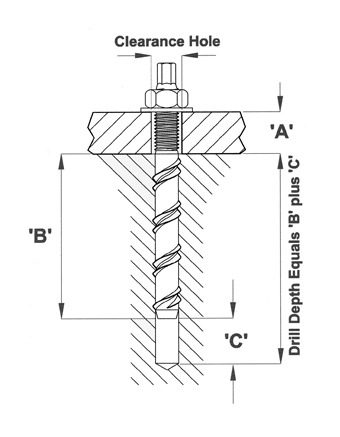

Studbolt Diameter	Stud Metric Thread	Hex Drive	Clearance Hole Diameter	Max Fixing Thickness 'A'	Thread Length	Clearance Depth 'C'	Metric Thread	Stud Length 'B'	Box Quantity	Order code:
16mm	M16	12mm	19mm	20mm	110mm	32mm	22mm	110mm	25	SSB 16 / 140

Drill Bit Diameter	Concrete	16.0mm
Drill Bit Diameter	-	-

*SSB 16mm* TECHNICAL DATA
Finish	Mechanical Zinc as standard
Other finishes	Other platings & finishes are available to special order subject to quantity
Tensile strength	800N/mm² Case hardened
Other sizes	Other lengths of all diameters are available to special order subject to quantity
Embedment concrete and brick	Minimum recommended is 4.5 × bolt diameter
Soft block	NOT recommended

All dimensions in millimetres (mm)
